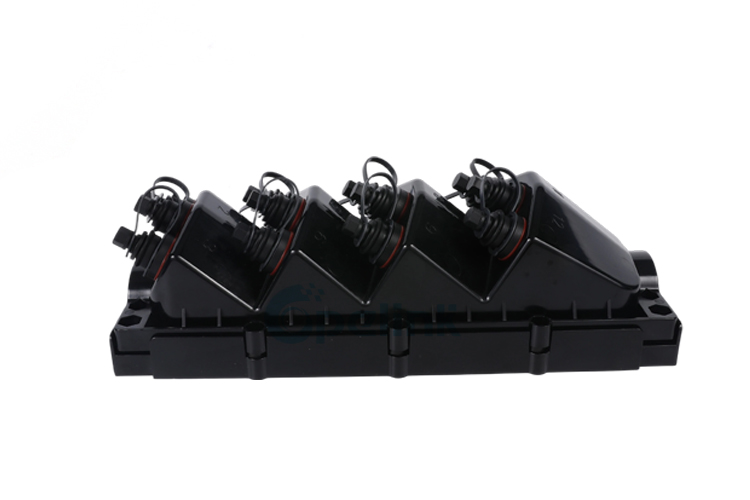

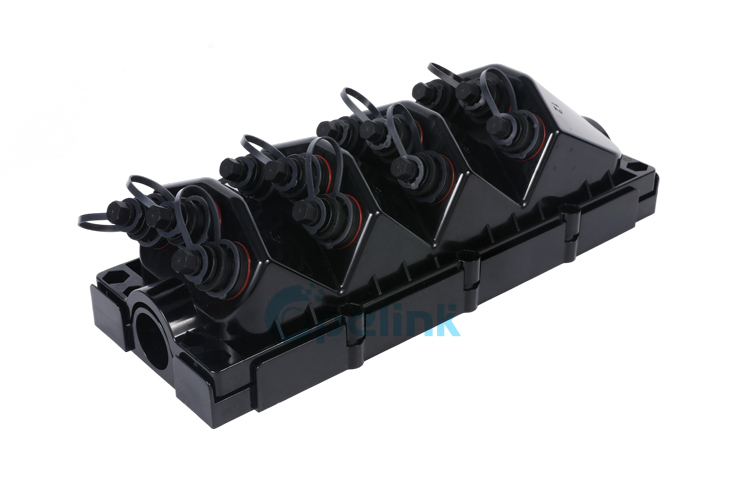

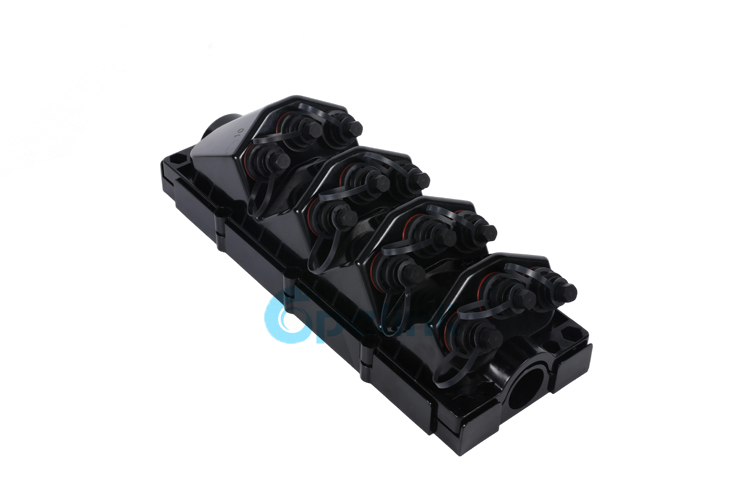

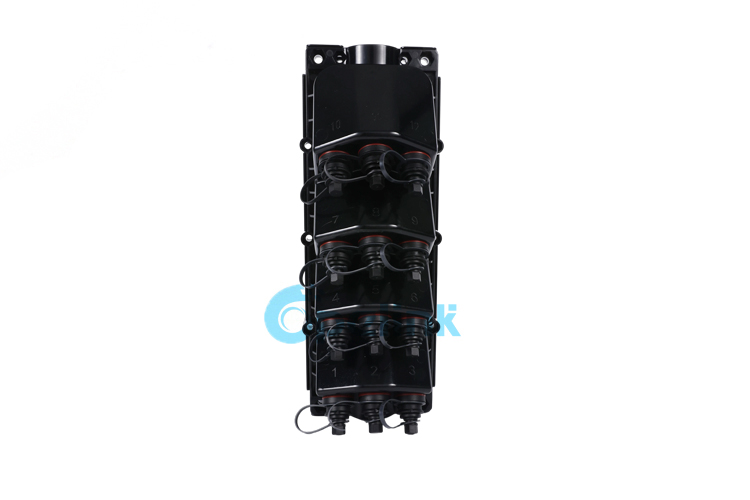

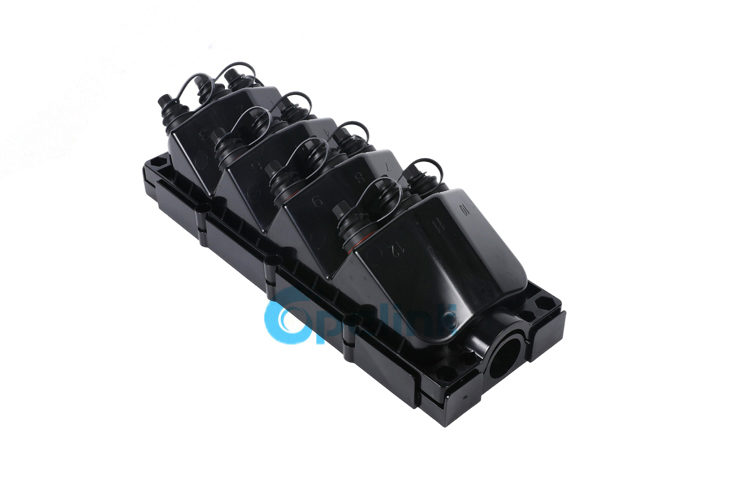

Caja terminal de fibra MST de 12 puertos - Solución de distribución de fibra FTTH premium:
La caja de terminales de fibra MST de 12 puertos es una solución avanzada de distribución de fibra diseñada para un despliegue eficiente en redes FTTx-ODN. Este terminal plug-and-play elimina la
necesidad de empalme de fibra o apertura de cierre, lo que permite un rápido aprovisionamiento de servicio en entornos exteriores.
Key Benefits:
.Reduces Total Cost of Operation (TCO) by 15-30%
.Factory-terminated for high performance and reliability
.No specialized tools required for installation
.IP-68 waterproof protection for harsh environments
Technical Specifications
1.Cable & Connector Features
| Specification |
Details |
| Cable Type |
Toneable,Single-Tube Gel-Filled (Dielectric available) |
| Cable Diameter |
4.5mm×9.7mm toneable |
| Port Count |
12 ports |
| Adapter Type |
SC/APC Hardened adapter, compatible with Optitap and H-connector |
| Stub Cable Length |
50 to 2000 feet(custom lengths available) |
2.Optical Performance
Fiber Type: Singlemode G.652D or Other
Wavelengths: 1310 nm / 1550 nm
Maximum Attenuation: 0.35 dB/km @ 1310nm / 0.25 dB/km @ 1550nm
Insertion Loss (Typical): ≤ 0.15 dB
Reflectance (Typical): -65 dB
Key Features & Advantages
1.Plug-and-Play Installation
Factory-terminated design with fully compatible adapter ports eliminates field splicing, reducing installation time by up to 70%
2.Universal Compatibility
100% compatible with Optitap and H-connector systems, ensuring seamless integration with existing network infrastructure
3.Flexible Installation Options
Multiple mounting configurations for diverse deployment scenarios:
.Pole mounting
.Pedestal installation
.Handhole deployment
.Aerial strand mounting
4.Superior Environmental Protection
IP-68 waterproof rating ensures reliable operation in:
.Outdoor FTTH networks
.Harsh weather conditions
.FTTA (Fiber to the Antenna) applications
5.Cost-Effective Operation
Reduces Total Cost of Operation by 15-30% compared to traditional fiber distribution solutions through:
.Faster deployment times
.Reduced labor costs
.Minimal maintenance requirements
Applications
.FTTH (Fiber to the Home) deployments
.Outdoor fiber distribution networks
.Harsh environment installations
.Access points in FTTx-ODN networks
